| 規格 Specification | |
| 系統 System | |
| 處理器 Processor | Intel® 6th/7th Gen. Core™ i3/i5/i7, Pentium®, Celeron® processor, LGA1151 Socket |
| 芯片 Chipset | Intel® H110 Chipset |
| 內存 Memory | DDR3L 1333/1600MHz, 2 x UDIMM Slot, up to 16GB |
| 圖形 Graphics | Intel® HD Graphics, dual display |
| 存儲 Storage | 3 x SATA 3.0, 1 x mSATA |
| 操作系統 OS | Windows 7/8/10, Linux |

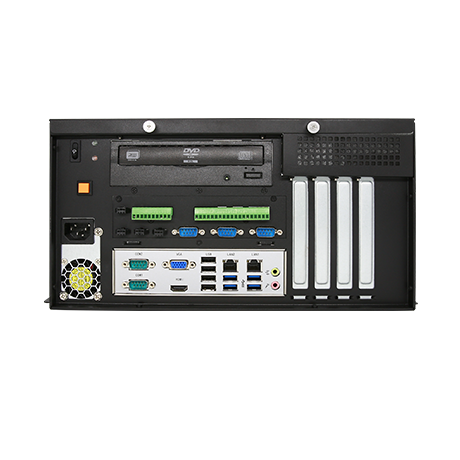

| 外部接口 External I/O | |
| 網口 Ethernet | 1 x Intel® I211AT GbE (10/100/1000 Mbps) , 1 x Intel® I219LM GbE (10/100/1000 Mbps) |
| 顯示 Video | 1 x VGA: max resolution up to 1920 x 1200@60Hz 1 x HDMI: max resolution up to 2560 x 1600@60Hz |
| 音頻 Audio | 1 x Line-out, 1 x Mic-in |
| 串口 COM | 2 x RS232/422/485 with Atuo Flow |
| USB | 4 x USB 2.0 (USB SR Pro supported), 4 x USB 3.0 (USB SR Pro supported) |
| 按鈕 Button | 1 x Power Button, 1 x Reset Button |
| 指示燈 LED | 1 x Power LED, 1 x HDD LED |
| 內部接口 Internal I/O | |
| 擴展接口 Expansion | 1 x PCIe X 16, 1 x PCIe X 4, 2 x PCI |
| USB | 1 x USB 2.0 (Type A), 1 x USB 2.0 pin header |
| 串口 COM | 8 x RS232 pin header |
| GPIO | 1 x 16bit GPIO |
| SATA | 3 x SATA 3.0 |
| LPT | 1 x LPT pin header |
| PS/2 | 1 x PS/2 pin header |
| 風扇 FAN | 1 x CPU Fan pin header, 1 x System Fan pin header |
| 環境 Environmental | |
| 操作溫度 Operating Temp. | 0℃~ 40℃ |
| 操作溫度 Operating Temp.. | -20℃~ 60℃ |
| 濕度Relative Humidity | 5% ~ 95%, 非凝結狀態 Non-condensing |
| 電源 Power | |
| 電源輸入 Power Input | 100~240V(AC) |
| 電源功耗 Power Watt | 250W |
| 機構 Mechanical | |
| 外觀 Housing | SGCC |
| 安裝方式 Mounting | 桌面式 (Desk-Mount) |
| 尺寸 Dimension | 366.3 (L)x 330 (W) x 176 (H)mm |
| 重量 Weight | 9kg(約) |
| 認證 Certification | |
| 安規認證 Safety Certification | CCC |
